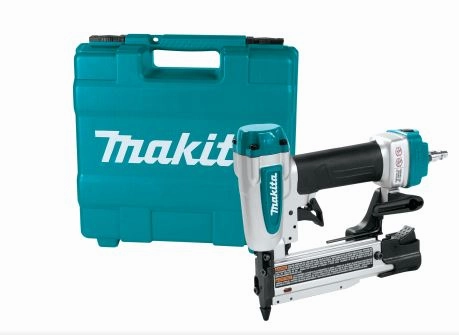

Makita AF353 23 Gauge, 1-3/8" Pin Nailer | Model: M-AF353

Please call if you have any inquiries regarding this product.

Feature:

• Powerful motor drives standard headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8"
• Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs.
• Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)
• Side, drop-in loading magazine holds up to 130 nails for maximum efficiency
• Built-in air duster provides convenient air flow to clear work surface
• Double, 2-finger trigger for user convenience
• Rear exhaust port directs exhaust air away from operator and work surface
• Includes two removable no-mar tips with sightlines for increased pinning accuracy; convenient on tool storage
• Easy to clear nose for fast and easy nail extraction should a jam occur
• Narrow nose design allows easy nailing access to tight areas and angles
• Magazine self adjusts to the proper 5/8", 3/4", 1", 1-3/16" or 1-3/8" fastener length when loaded
• Reversible belt hook allows the tool to remain close
• Housing bumpers protect tool and work surface
• Integrated rubber soft grip for operator comfort
• Ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a wide variety of other woodworking applications
• Minimum recommended air delivery of .8 SCFM @ 90PSI

Specifications:

• Power Type : Pneumatic
• Operating Air Pressure (PSI) : 65 - 100
• Minimum Recommended Air Delivery : .8 SCFM @ 90 PSI
• Nail Size : 5/8", 11/16", ¾", 1", 1-3/16", 1-3/8" (23 ga.)
• Maximum Magazine Capacity : 130
• Fastening category : Pin
• Dimensions (LxWxH) : 8-3/16" x 2-5/8" x 7-1/2"
• Net Weight : 2 lbs.
• Industrial Style Fitting Included : 1/4" NPT x 1/4"
• Inlet Size : 1/4" NPT
• Operating Air Pressure (Bar) : 4.9 - 8.3
