FR sports car "86 & BRZ" was launched in tremendous popularity of ecologically-friendly cars. HKS has been released various tuning parts for "86 & BRZ." Among HKS' 86 & BRZ parts, the supercharger kit has been redesigned.
The efficiency improved by layout change of piping around the throttle and utilizing a bigger size intercooler.
Compared to stock, 35% higher output and 45% higher torque are achieved. Fuel Upgrade Kit for higher engine output is available for engine output of over 300PS.
For the owners of the conventional Supercharger kit, Intercooler Upgrade Kit is available to convert the existing kit to new version.
【Features】
- Using the stock air cleaner enables sound isolation of the supercharger; the quietness is dramatically improved.
- Each HKS GT2 Supercharger System is a vehicle-specific design. All parts necessary for installation are included. (An engine management system is required separately.)
- Free to select the engine management tool. (For JDM vehicles, Flash Editor including the data for this Supercharger Kit is available for easy data rewriting.)
【Performance】
| Power | Torque | |
| HKS GT2 S/C STEP2 (S/C Pro Fuel up Flash) | 302PS | 32.2kg-m |
| HKS GT2 S/C STEP1 (S/C Pro Flash) | 249PS | 29.7kg-m |
| Conventional Flash | 220PS | 25.6kg-m |
| Normal | 184PS | 20.3kg-m |
* These data were the results of in-house test. The results may vary depending on the weather, measuring equipment, etc.
(Test Vehicle: 86 (ZN6 A) MT)

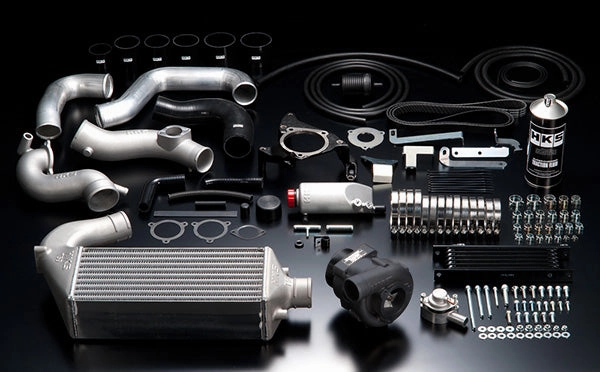

【KIT Parts】
| GT2 S/C Pro | I/C UP | Fuel UP | |
| Supercharger Assy | ○ | × | × |
| S/C Traction Parts | ○ | ○ | × |
| S/C installation Bracket | ○ | ○ | × |
| Suction Pipe | ○ | ○ | × |
| Intercooler ASSY | ○ | ○ | × |
| Intercooler Pipe | ○ | ○ | × |
| Bracket, etc. | ○ | ○ | × |
| Injector | × | × | ○ |
| Restrictor | φ39 | φ39 | φ43 |
Fuel UP GRADE kit
Flash Editor
(Available only for JDM Vehicle)
【Notice for Installation】
- It is recommended to use with the engine oil cooler and engine oil which high temperature viscosity is more than 40.
- Minor modification of the bumper reinforcement and radiator support.
- Required installation time is about 8 hours.
NOTE: Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
●INTERCOOLER UPGRADE KIT
| Vehicle | Model | Engine | Year | Code No. | Remarks |
| 86/BRZ | ZN6/ZC6 | FA20 | 12/4- | 13001-AT007 | Some factory parts such as an air cleaner are required. |
●FUEL UPGRADE KIT
| Vehicle | Model | Engine | Year | Code No. | Remarks |
| 86/BRZ | ZN6/ZC6 | FA20 | 12/4- | 14007-AT001 | Data for this kit must be obtained by actual vehicle's setting. |
